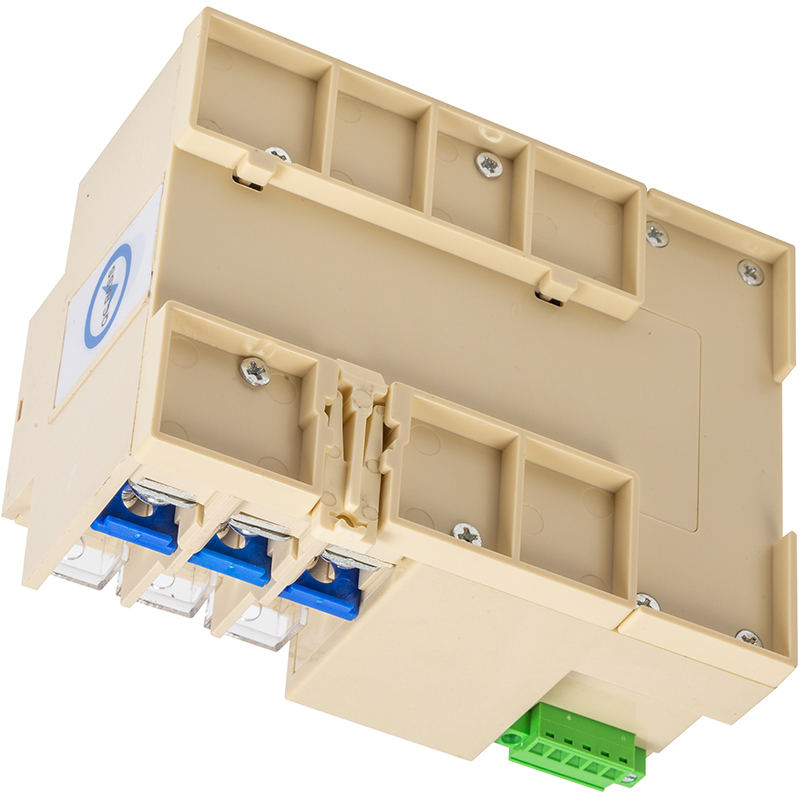

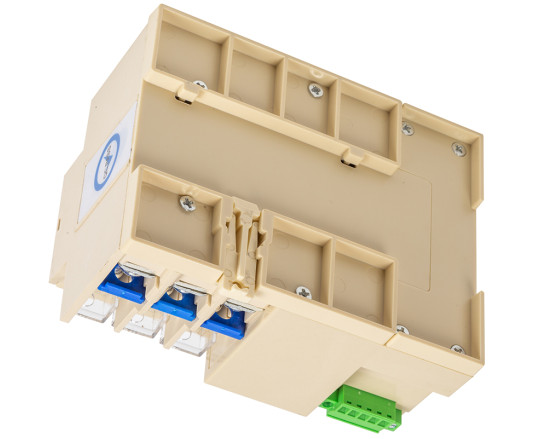

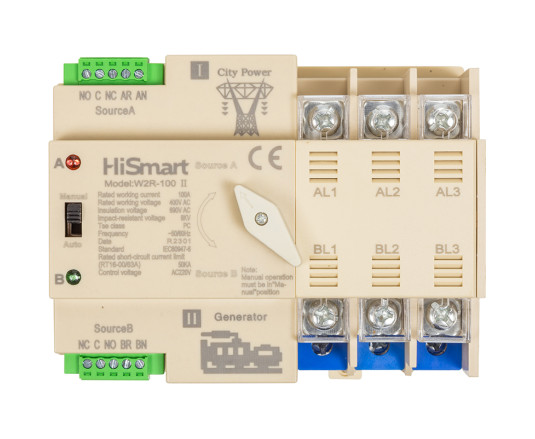

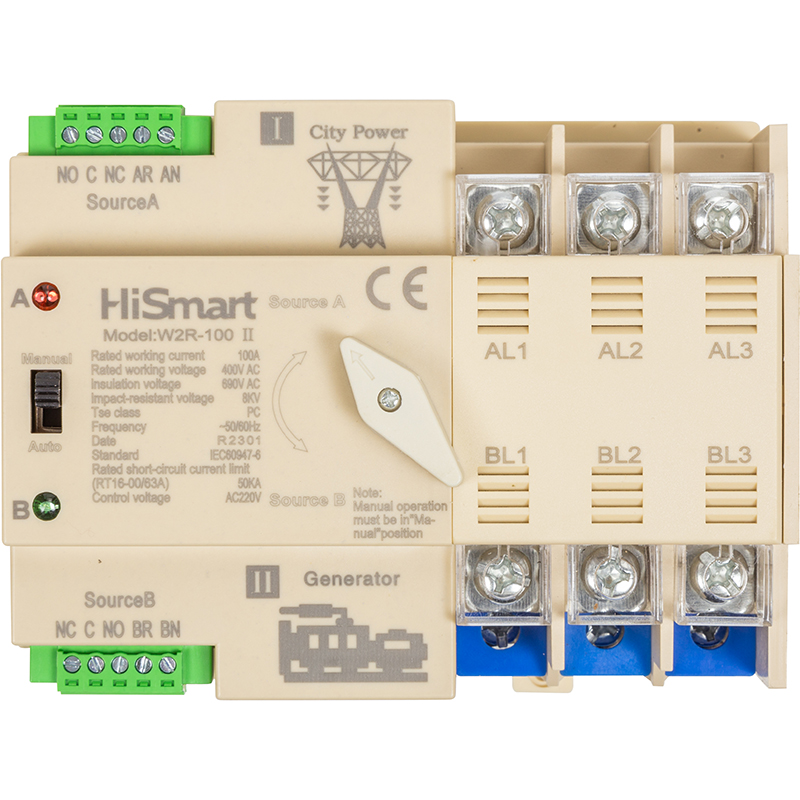

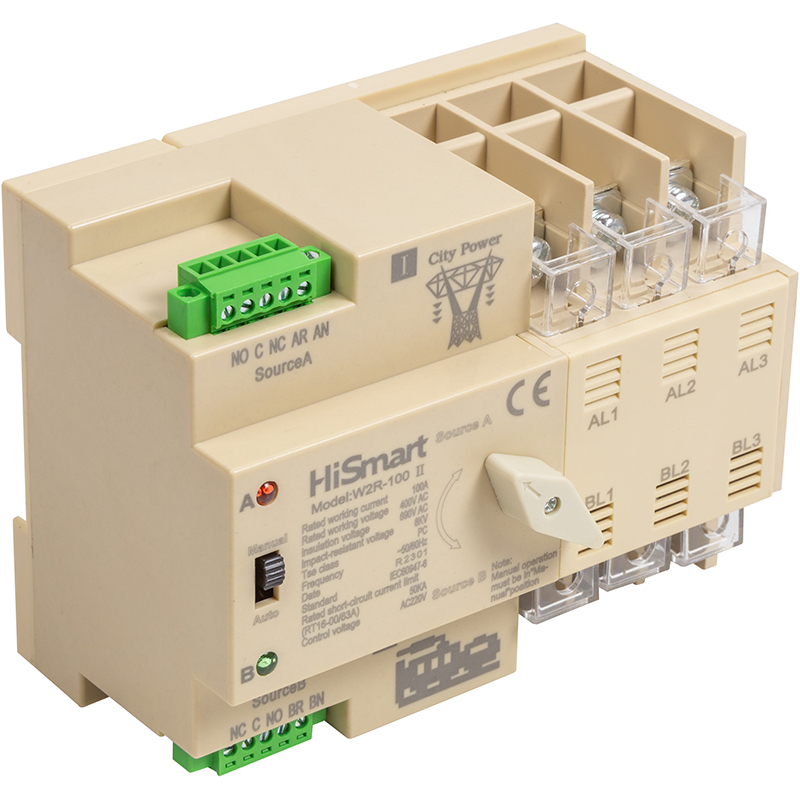

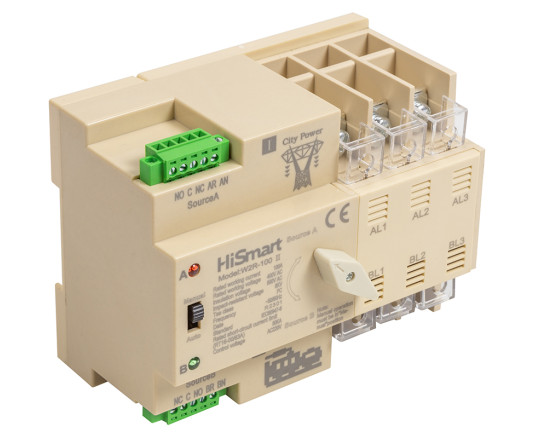

Automatic switch HiSmart W2R-3P 220V 100A (HS082499)
2 999 UAH
Description
The series of automatic transfer switches is suitable for 220V, 100A emergency power supply systems with AC rated current of 50v or 60Hz, compact structure, reliable conversion, easy installation and maintenance. long service life. It is widely used in various occasions where continuous power outage is not allowed. It can be controlled electrically or manually by ATS and controller.
- Rated current: 100A.
- Insulation voltage: AC 690V.
- Rated voltage: AC 400V.
- PC class: able to withstand and not break short circuit current.
- Usage category: AC-33iB.
- Fields: 3P.
- Working life: Electrical: 2000 times; Mechanical: 5000 times
- Rated current of short circuit conditions: 50kA.
- SCPD (fuse): PT16-00-63A.
- Rated impulse withstand voltage: 8kV.
- Control circuit: Rated control voltage Us: AC220V, 50Hz Correct working condition 85% Us ~ 110% Us.
- Auxiliary circuit: AC220V/AC110V 50/60 Hz.
- Contact transfer time: <50ms.
- Business day transfer time: <50ms.
- Reverse translation time: <50ms.
- Disconnection time: <50ms.
- Temperature range: -5C ~ +40C average temperature a little over 35? within 24 hours.
- Size: 125x95x80 mm.
- Weight: 633 g.
- Package size: 105 x 150 x 85 mm.
- Package weight: 699
- Warranty: 12 months.
